ACR Electronics

ACR RCL100 LED Seachlight With Point Pad 12/24V White Housing 1951

(No reviews yet) Write a Review
SKU:
ACR1951
UPC:
791659019511
MPN:
1951
Condition:
New
MSRP: $1,934.50
$1,682.17
— You save $252.33

Description

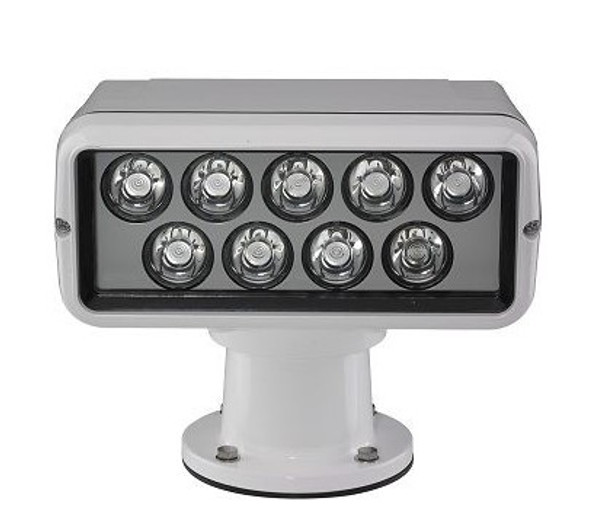

ACR RCL100 LED Spotlight with Wired Point Pad, White Housing

Model: ACR1951
  • Ultra bright, 9 LED array generates over 200,000 peak candela
  • Efficient, long life LED’s - 40,000 operating hours
  • Controller has state-of-the-art electronics to protect light from most power surges
  • Internal elevation mechanism for precise pitch control of beam; protects elevation mechanism from weather
  • Rugged triple-primed and sealed, marine grade aluminum housing
  • Exclusive XRCiZ™ feature rotates and moves light assembly every 30 days from activation to keep all bearing surfaces free of corrosion and all electrical contacts functional
  • Wiring harness of 15 feet (4.57 m)
  • Two speed motor
  • GF

The LED version of their most popular RCL-100D searchlight provides high intensity LED performance that pierces through night and low lighting conditions with a blazing 200,000 candela. The RCL-100 LED’s traditionally sleek design makes it an attractive and cost effective choice for sport yachts, mega-yachts, sport fishers as well as light commercial vessels. The RCL-100 LED continues to utilize the same rugged design as the original RCL-100, but incorporates a new efficient 9 LED array that produces over 200,000 candela of light. The die cast aluminum housing and glass lens are sealed against the elements for years of trouble-free operation. Other features include a remote control operation that allows users to rotate the light 360 degrees continuously at either a fast or slow speed without the hassle of a hard stop. With a 7 degree beam angle, the light also provides elevation angles at 9 degrees up and 17 degrees down to make lighting draw bridges, buoys and docks a breeze.

Not all searchlights are created equal. The die cast aluminum case is triple-primed and painted with UV stabilizer to withstand years of exposure in harsh marine environment. The light’s internal elevation mechanisms are fully enclosed and provide precise pitch control of the beam while staying protected. The LED bulbs are efficiently designed to provide over 40,000 operating hours. The light also includes their Exclusive XRCiZ™ feature that pre-programmed and allows for the light to independently rotate every 30 days from activation to insure all bearing surfaces are free of corrosion and all electrical contacts functional. The RCL-100 LED is completely weatherproof and is available with a weatherproof remote control and operates with 12 or 24 DC power.

Specifications
MaterialAluminum Alloy Die Casting
ColorWhite
OperationWired Point Pad
Beam Angle7 degree
Elevation angle9 degree up 17 degrees down
RotationContinuous 360 degrees
Rotation SpeedFast 31 degrees per second, slow 20 degrees per second
Elevation speed2.8 degrees per second
LampHigh intensity LED (40,000 hour life)
AccessoriesSecondary Point Pad™ (P/N 9282.3)
Input voltage12 or 24 V DC
Peak beam candlepower200,000
Dimensions8 x 9 x 8 (20.3 x 22.9 x 20.3 cm)
