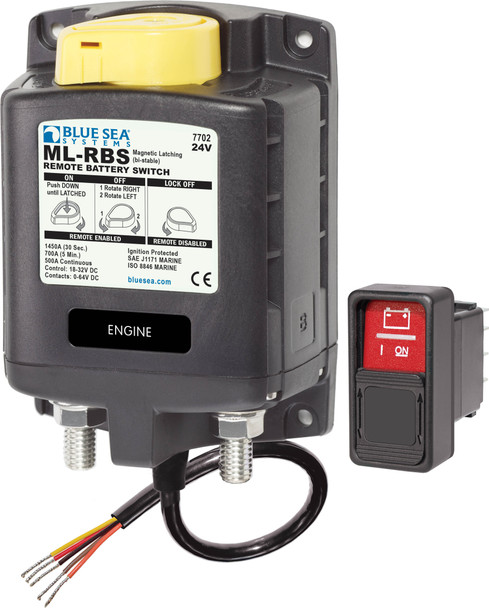

Blue Sea ML-RBS 24vDC 500A Remote Battery Switch With Manual Control 7702-BSS

(No reviews yet) Write a Review
SKU:
BSS7702
UPC:
632085077020
MPN:
7702-BSS
Condition:
New
MSRP: $230.36
$200.31
— You save $30.05

Description

Blue Sea ML-RBS Remote Battery Switch with Manual Control - 24V DC 500A

Model: 7702-BSS
  • Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
  • LED output to remotely indicate switch state - requires optional LED
  • 3? 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
  • 7? 8" (22 mm) stud length accepts multiple cable terminals
  • Label recesses for circuit identification
  • Silver alloy contacts provide high reliability for switching live loads

500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations

Specifications
Control Circuit Voltage18-32V DC
Control Circuit ConnectionTinned Wire
Nominal Voltage24V DC
Manual ControlYes
Coil FunctionBi-Stable
Amperage Operating Current0mA
Amperage Operating Current when changing state<4A (40 ms)
Continuous Rating500A
Intermittent Rating700A - 5 minutes
Cranking Rating 30 sec1450A DC
Minimum Operating Temperature-10° C
Maximum Operating Temperature60° C
Cable Size to Meet Ratings2x (4/0)
Live Current Switching300A @ 12V DC, 150A @ 24V DC
Master Control Switch CapabilityNo
Mechanical Endurance100,000 Cycles
Terminal Ring Diameter Clearance1.18in (29.97 mm)
Terminal Stud Length0.875in (22.23 mm)
Terminal Stud Size3/8" - 16 (M10)
Weight2.05lb (0.93 kg)
