Ronstan

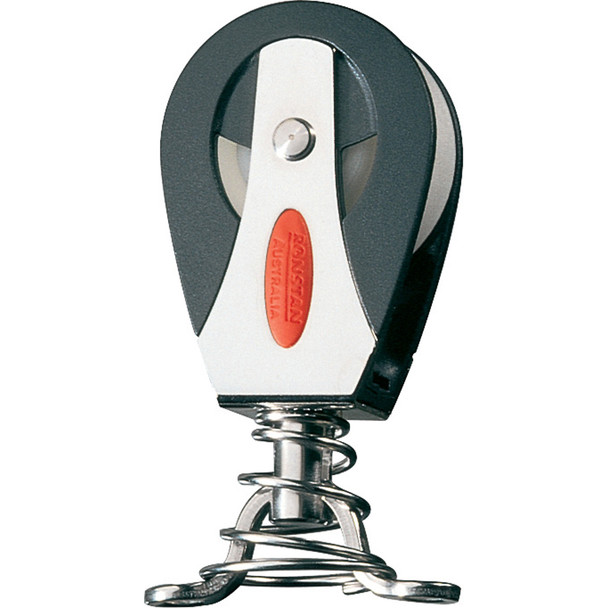

Ronstan Series 40 All Purpose Block - Single - Stand Up RF41140

(No reviews yet) Write a Review
SKU:
CW55205
UPC:
9316800244362
MPN:
RF41140
Condition:
New
MSRP: $40.31
$35.05
— You save $5.26

Description

Series 40 All Purpose Block - Single - Stand Up

All purpose (AP) blocks are a great all around solution. Self-lubricating Acetal polymer sheaves running on polished stainless steel races perform equally well with dynamic loads and high static loads. For durability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing. Captive Lock™ universal head can be fixed in either of two planes, or free to swivel as required.

Features:
  • Exceptionally high working loads
  • Low maintenance, long service life
  • Self-lubricating sheave
  • Captive Lock™ universal head
  • Mount with 2 x 5mm (3/16") fasteners (not supplied)


Applications:
  • Mainsheet
  • Halyard
  • Vang
  • Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8M(26')


Materials:
  • U.V. stabilized Acetal sheaves
  • Impact and U.V. resistant, fiber reinforced Nylon cheeks
  • Grade 316 stainless steel bearing race
  • Grade 316 stainless steel load strap and head fitting


Specifications:
Sheave Ø: 40mm(1-9/16")
Max. Rope Ø: 10mm(7/16")
M.W.L.: 400kg(880lbs)
B. L.: 800kg(1,760lbs)
Weight: 72g(2.5oz)
