Simrad
Simrad RF45X Rudder Reference 22011415
- SKU:
- SIM22011415
- UPC:
- 809190313460
- MPN:
- 22011415
- Condition:
- New
Description

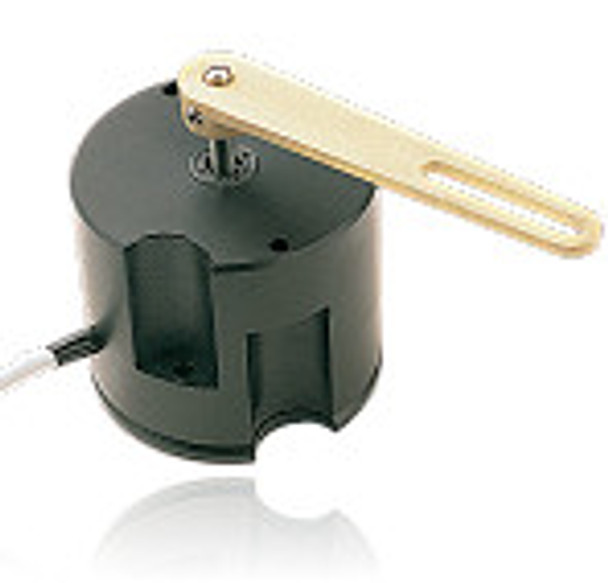

The RF45X is a medium duty rudder feedback unit. Mechanically it is identical to it's predecessor RF45, therefore it is a repairable rather than a potted throw away item. Electrically it outputs a frequency (pulse width modulated) signal that matches with the J3XX input (AP35/AP50), but it can also output a frequency signal (selectable via internal jumpers) that matches with AP45 and AP9 Mk3. The RF45X can also operate on 24V DC, a useful feature when connected in a stand alone rudder angle indicator system. The unit is mounted close to the rudder stock and is mechanically connected to the rudder by the RF45 transmission link.
