Si-tex

Sitex V200 Satellite Compass With NMEA2000 VECTOR200-2

(No reviews yet) Write a Review

SKU:: SITVECTOR2002
UPC:: 010407520575
MPN:: VECTOR200-2
Condition:: New

MSRP: $1,518.66

$1,320.57

— You save $198.09

Current Stock: 5

Quantity:

Description

Description

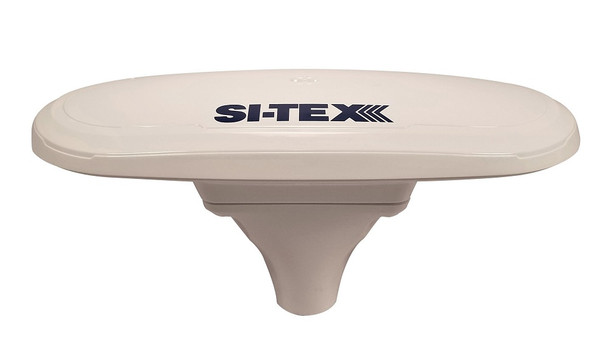

Si-Tex Vector V200 Satellite Compass - NMEA2000

Model: Vector200-2

L1 GPS, GLONASS, Galileo, BeiDou, QZSS
Optional 30 cm RMS world-wide positioning accuracy with Atlas corrections
0.75 degree heading accuracy in an amazingly small form factor
Excellent in-band and out-of-band interference rejection
Integrated gyro and tilt sensors help deliver fast start-up times and provide heading updates during temporary loss of satellites
Provides heading, positioning, heave, roll, and pitch

Experience superior navigation from the accurate heading and positioning performance available with the Vector™ V200 GNSS compass. The multi-GNSS Vector V200 supports GPS, GLONASS, BeiDou, Galileo, and QZSS and offers an amazing world-wide 30 cm (RMS) accuracy via Hemisphere’s Atlas GNSS global correction service.

The Vector V200 offers an incredible combination of simple installation, small form factor, and amazing performance. The compass - measuring only 35 cm in length - mounts easily to a flat surface or pole. The stability and maintenance-free design of the Vector V200 provides simple integration into autopilots, chart plotters, and AIS systems

Specifications

GNSS Sensor Specifications
Receiver Type	Vector GNSS L1 Receiver
Signals Received	GPS, GLONASS, BeiDou, Galileo, QZSS 7, and Atlas
Channels	424
GPS Sensitivity	-142 dBm
SBAS Tracking	2-channel, parallel tracking
Update Rate	10 Hz standard, 20 Hz optional
Power
Input Voltage	6 to 36 VDC
Reverse Polarity Protection	Yes
Dimensions
No Mount	34.8 L x 15.8 W x 7.5 H (cm)
LP Flat Mount	34.8 L x 15.8 W x 7.6 H (cm)
HP Flat Mount	34.8 L x 15.8 W x 10.7 H (cm)
Pole Mount	34.8 L x 15.8 W x 16.8 H (cm)
